锚固钻机
产品简介
PRODUCT INTRODUCTION

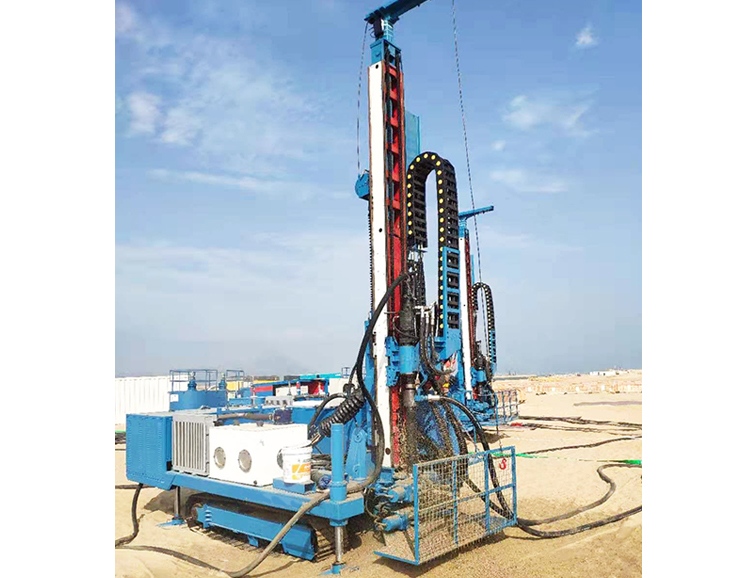

MXL-160D型
1、操作简单。
2、本机可以安装参数记录仪，精准记录施工各种参数。
MXL-160D drilling rig adopts the design of large-diameter high-pressure rotary jet drilling tool, which can meet the construction requirements of large-scale high-pressure rotary jet grouting pile.
The drilling rig has the following characteristics:
1. The operation is simple.
2. The machine can be equipped with a parameter recorder to accurately record various construction parameters.
使用性能 | Specifications | MXL-160D |
钻孔角度 (°) | Hole Angle (°) | 0~90 |
钻杆直径 (mm) | Rod Diameter (mm) | φ73,φ89,φ114，φ133,φ146 |
夹持范围（mm） | Gripper Diameter（mm） | 73~250 |
回转器最大输出扭矩(N.m) | Rated Output Max Torque (N.m) | 6400 |
回转器最大输出转速(r/min) | Rated Rotary Max Speed (r/min) | 130 |
运输状态(长*宽*高) (mm) | Transport Dimension(L*W*H) (mm) | 6100*2300*2400 |
垂直工作状态(长*宽*高) (mm) | Vertical Working Dimension (L*W*H) (mm) | 4700*3100*6100 |
重量 (kg) | Weight (kg) | 7000 |
因产品在不断地改进和发展，结构和技术参数均可能随之改进。详细参数请致电：400-100-5187，或发邮件：service@wxanman.com，和我们联系，谢谢！
